4R BHSS 4 ROLL BENDING MACHINE

4 Roll Plate Bending Machines

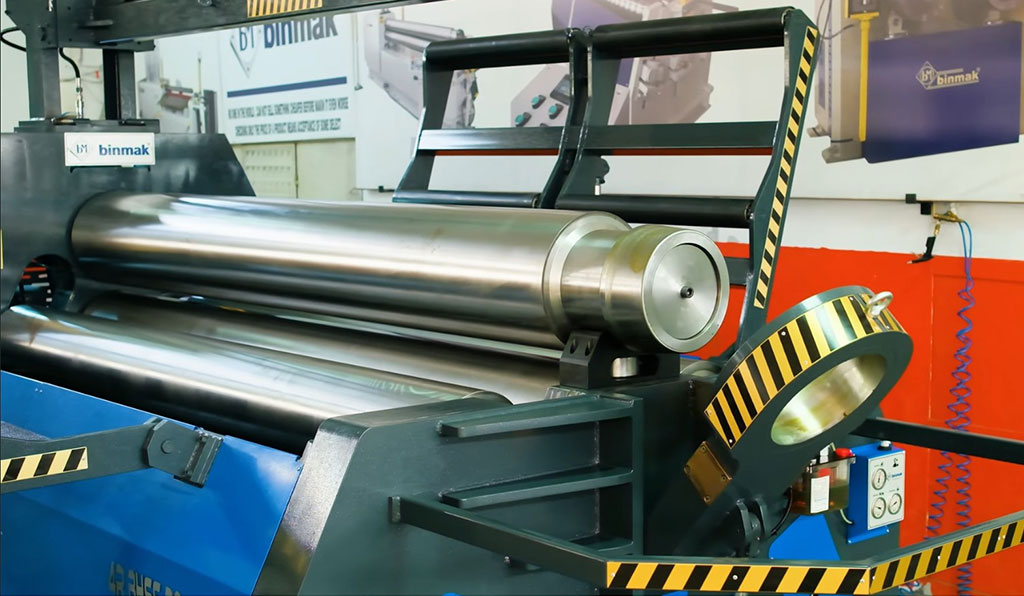

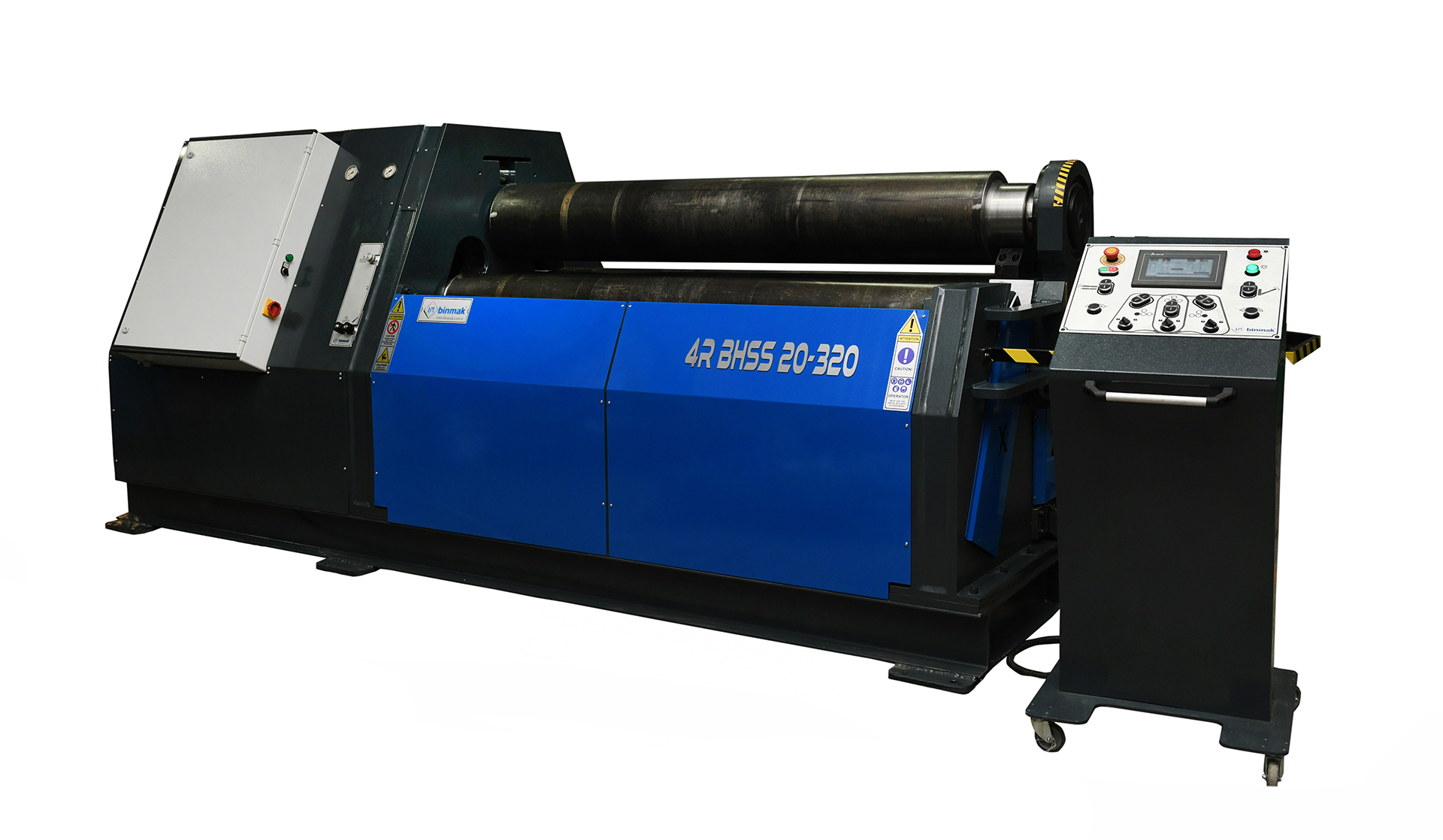

4R BHSS 4 ROLL BENDING MACHINE

Very suitable for bending light and medium sheet metal or stainless materials. Round materials and materials of various diameters are easily bent. The bottom roll and side roll...

Request a Quote Product Catalog

Ürün Detayları

Very suitable for bending light and medium sheet metal or stainless materials.
Round materials and materials of various diameters are easily bent.
The bottom roll and side rolls are hydraulically orbital with pistons connected to the body.
Protected against overloading.
Top roll is driven by hydromotor and planetary reducer (single roll driven).
The position of the rolls is easily read with three digital indicators.
Thanks to the hydraulic opening head, the bent part is easily removed.

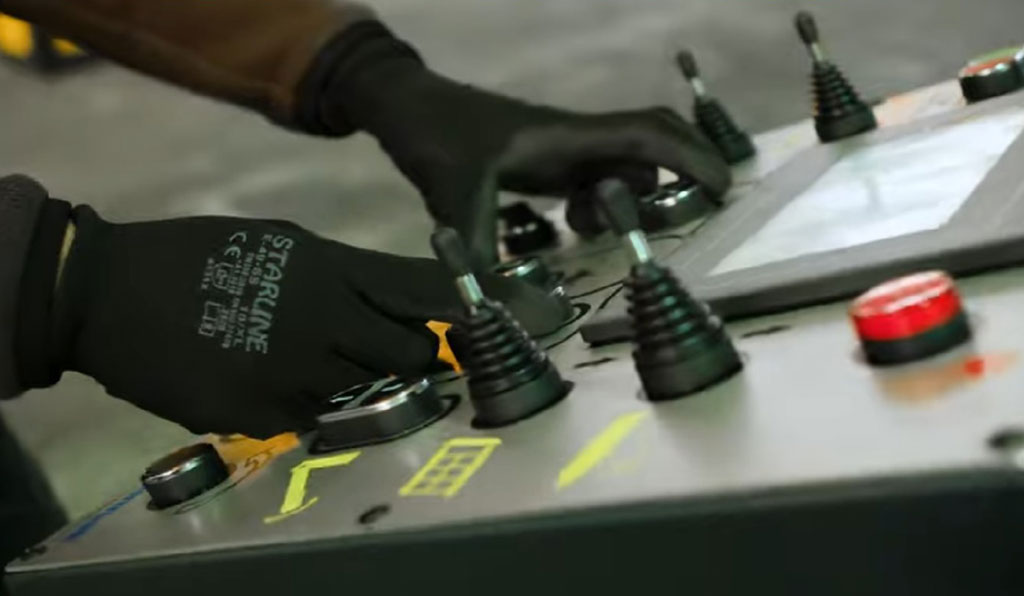

Very easy operation with movable control panel.
Welded steel construction body.
SAE 1050 (CK45) induction hardened, forged or rolled steel shafts.
Taper bending system.
Electronic balancing system for parallel movement of the shafts.
Central lubrication system.
Double speed working system.
Bearing housing system with roll bearings.
User's manual
CE norm

Opsiyonel Donanım

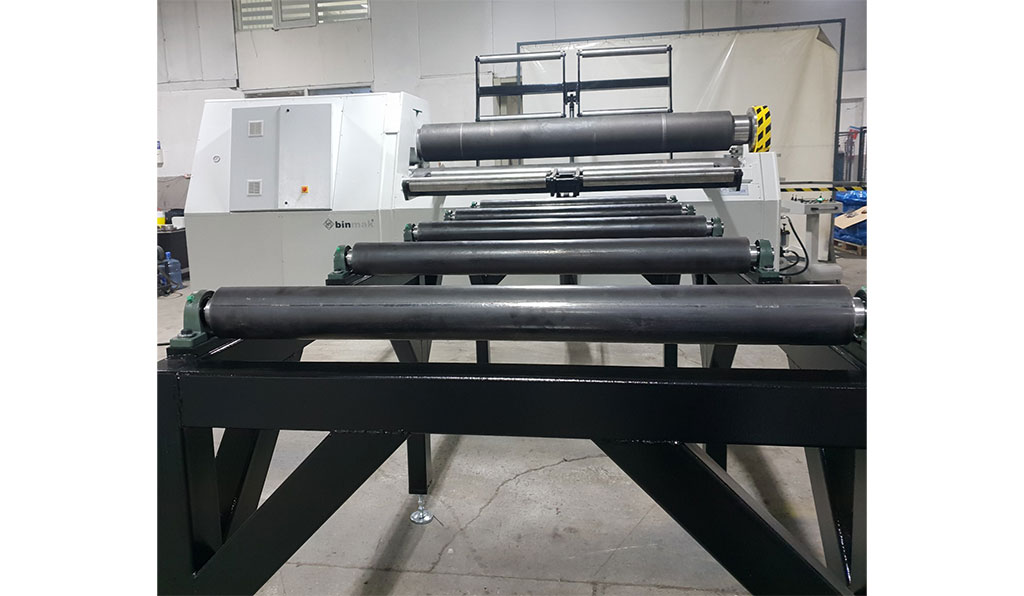

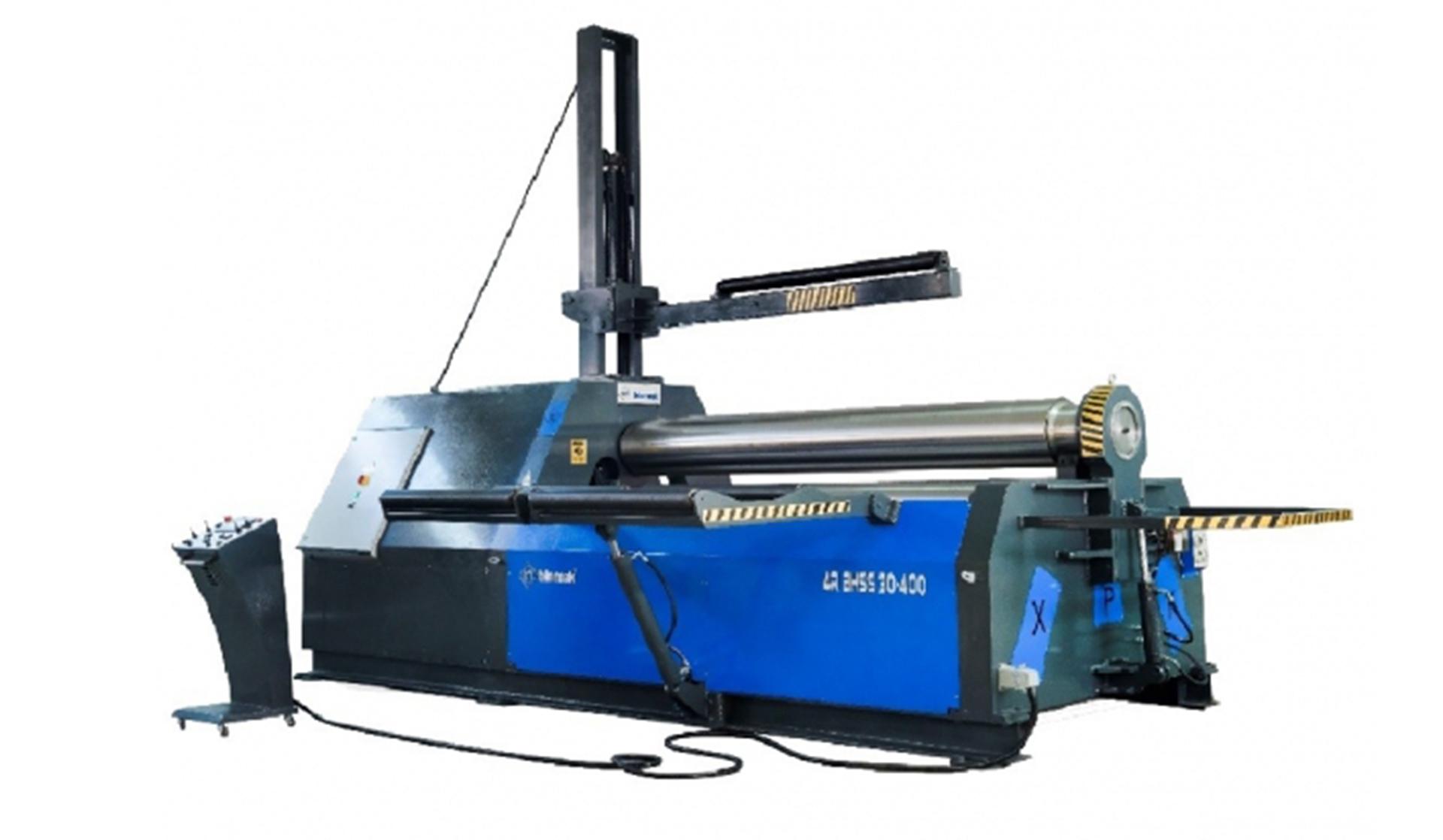

Material top support for large diameter bendping. (Elevator)
Hydraulic side stops for support in large diameter bending.

İlgili Ürünler

4 DMS 4 ROLL BENDING MACHINE

4R BMS 4 ROLL MACHINE

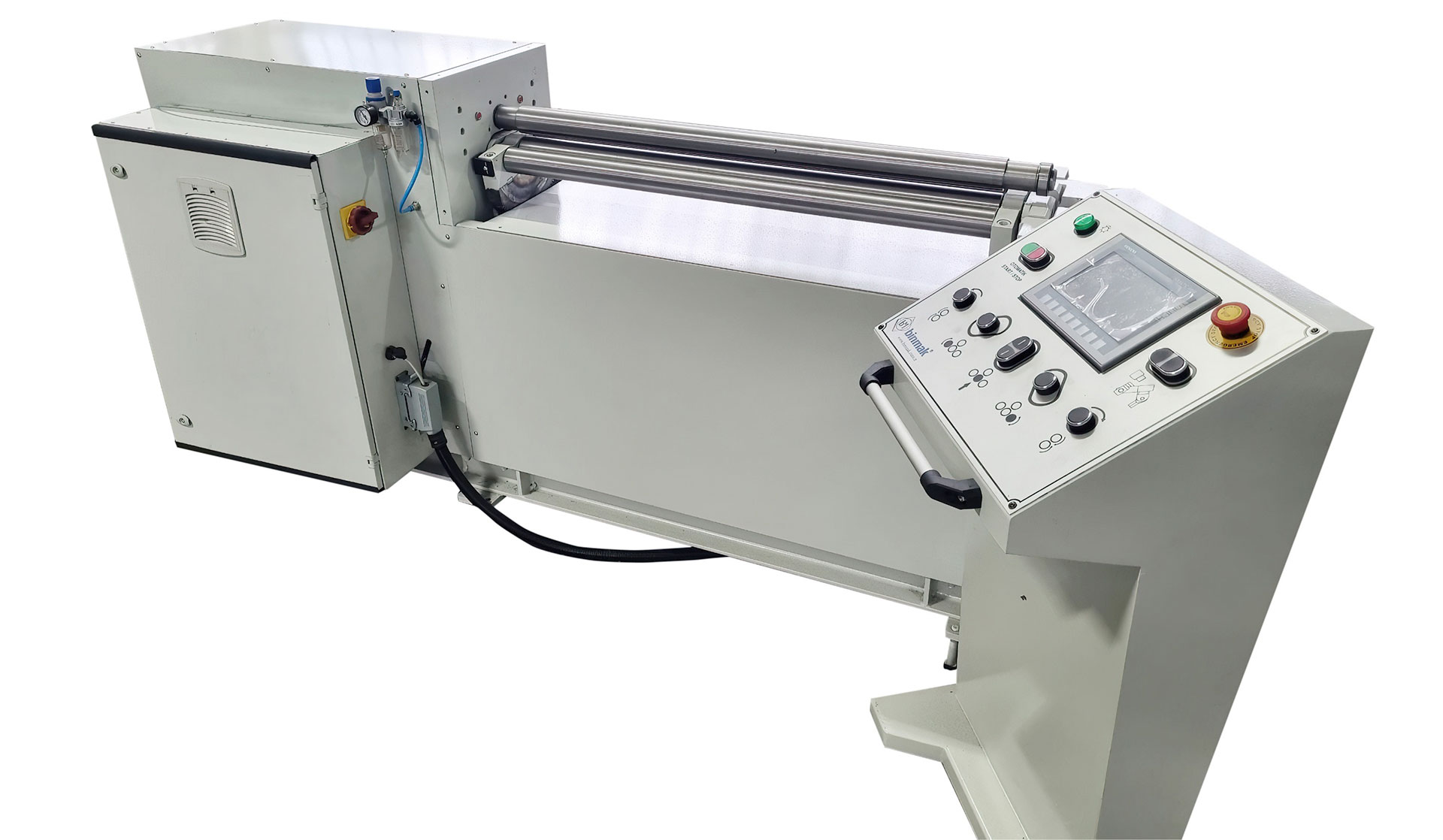

4 DMY Automatic 4 Roll Plate Bending Machine
