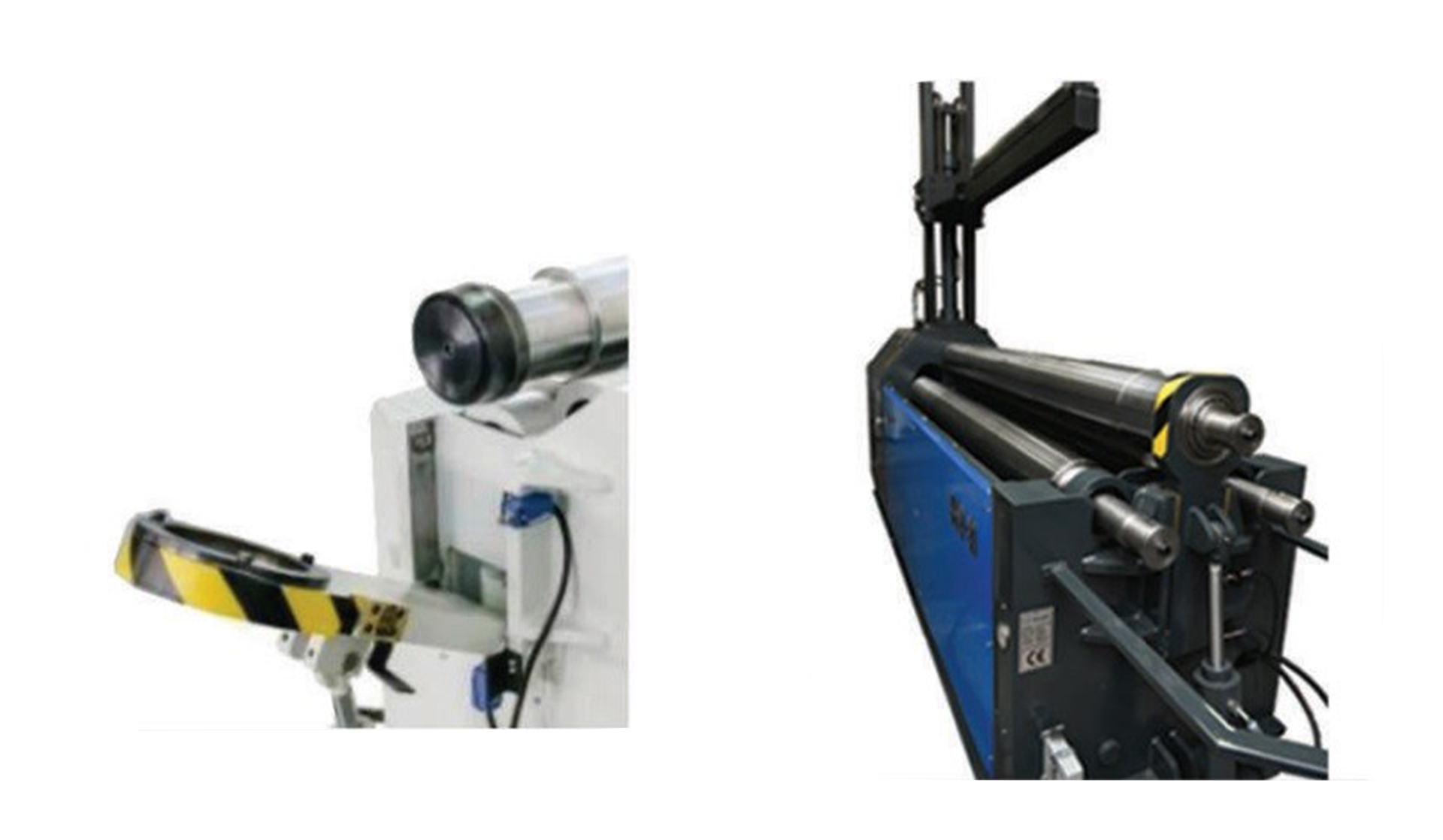

3 HS 3 ROLL MACHINE

3 Roll Plate Bending Machines

Very suitable for bending light and medium thick sheet metal, aluminum or stainless materials. Suitable for bending round and various diameter materials. The side rolls move or...

Request a Quote

Ürün Detayları

Very suitable for bending light and medium thick sheet metal, aluminum or stainless materials.
Suitable for bending round and various diameter materials.
The side rolls move orbitally up and down with the hydraulic piston.
Protected against overload.
The top roll is driven by a planetary gearbox. Side rolls are driven by chain gear.
Thanks to the hydraulic opening head, the bent part is easily removed.
Very easy operation with movable control panel.
Two digital indicators read the position of the lower rolls.
Welded steel construction body.
SAE 1050 (CK50) induction hardened, forged or rolled steel shafts.
Taper bending system with bearings.
Hydraulic balancing system for parallel movement of shafts.
Extended spindle ends for fitting profile, pipe, flat bar bending rolls.
CE norm.

Opsiyonel Donanım

Automation with NC and CNC control.
Top crane for support in large diameter bending. (Elevator)
Hydraulic side stops for support in large diameter bending.
Sheet removal system.
Ground and polished rolls for special jobs.
Infinitely variable speed adjustment system
Material feeding stand.
