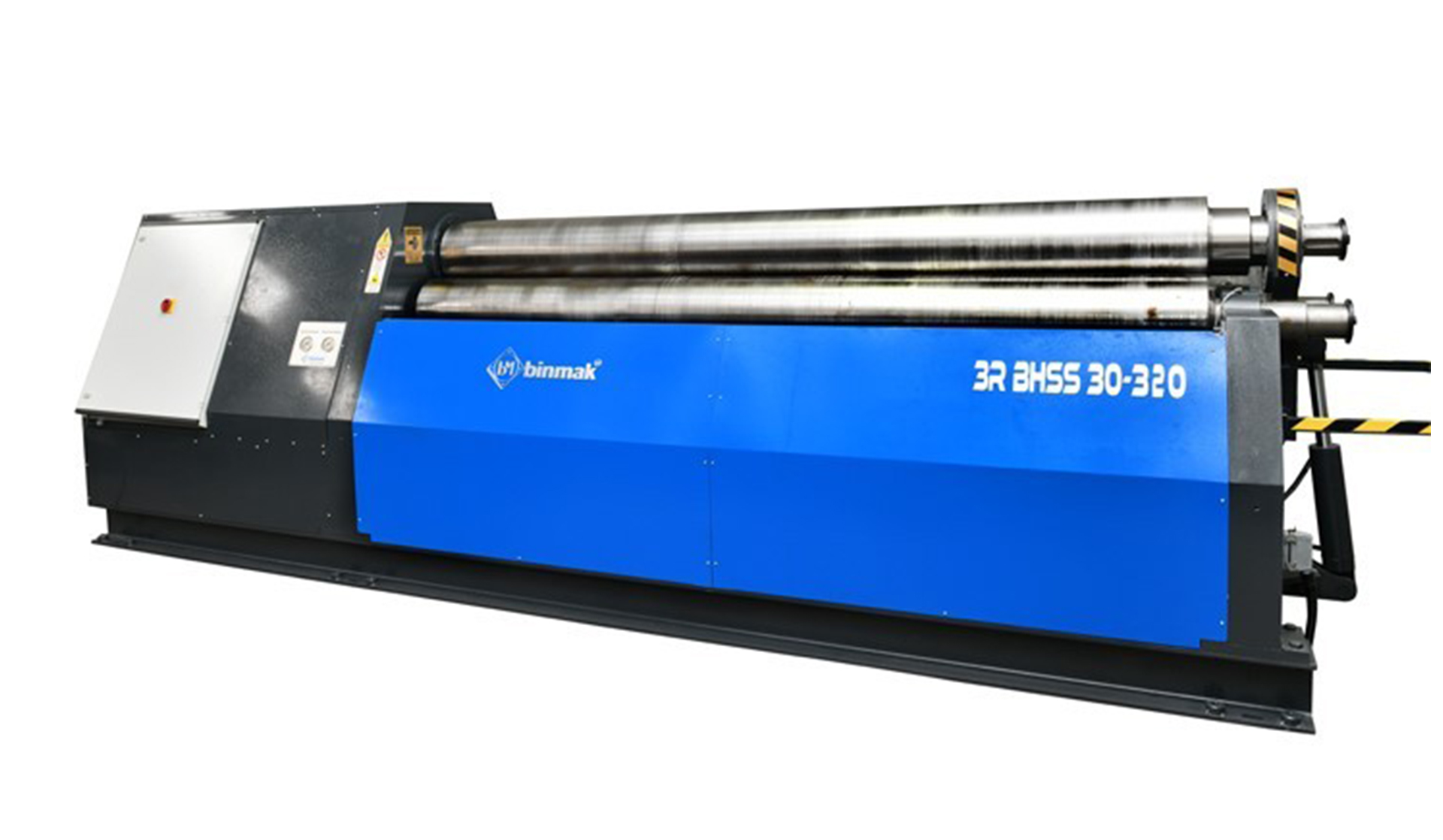

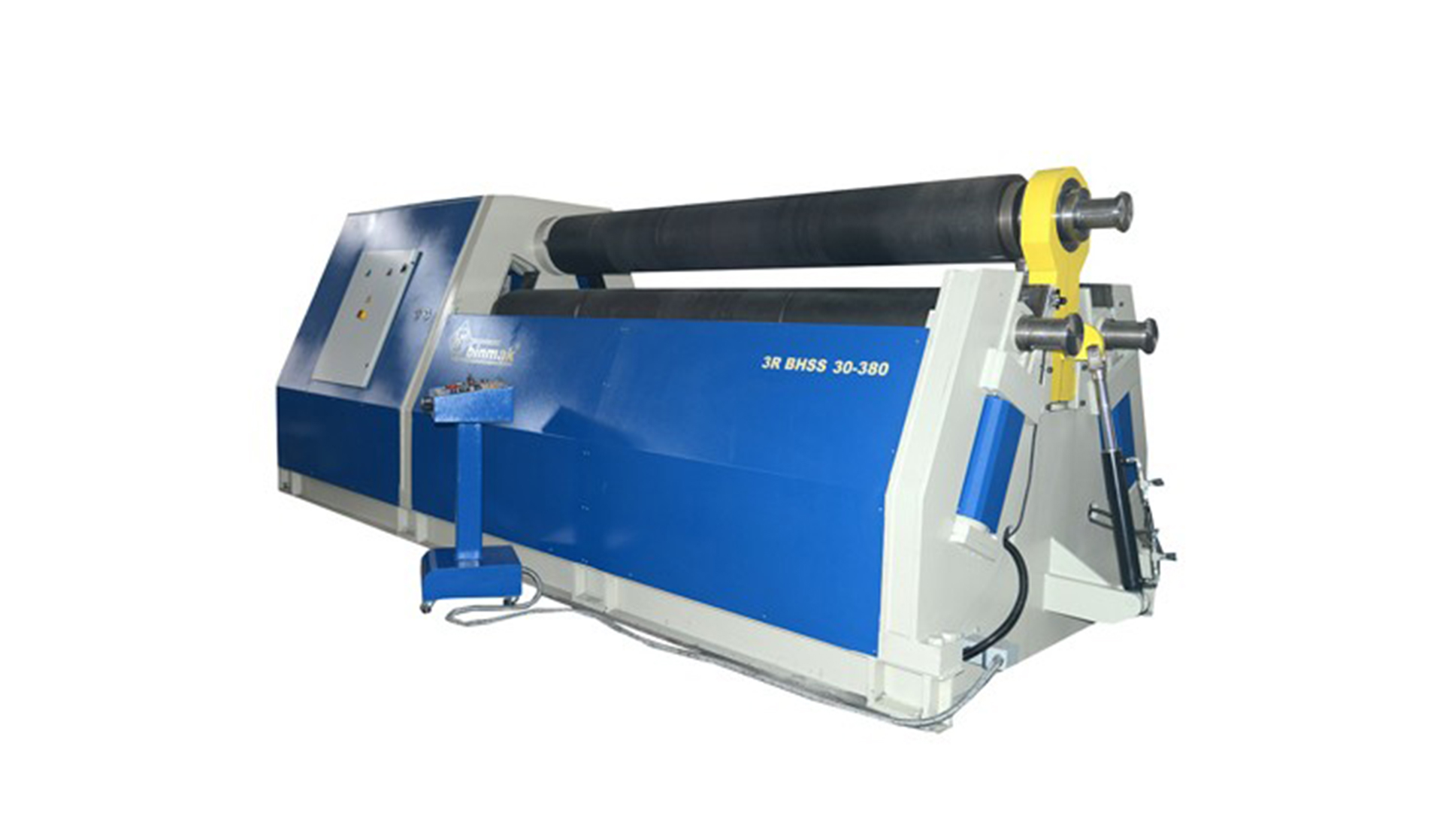

3R BHSS 3 ROLL MACHINE -HYDRAULIC

3 Roll Plate Bending Machines

3R BHSS 3 ROLL MACHINE -HYDRAULIC

Very suitable for bending light and medium sheet metal or stainless materials. Suitable for bending round and various diameter materials. The side rolls move hydraulically up and down, protected against overload, with a movable control panel for easy operation.

Request a Quote

Product Details

Very suitable for bending light and medium sheet metal or stainless materials.
Suitable for bending round and various diameter materials.
The side rolls move hydraulically up and down with pistons connected to the body.
Protected against overloading.
Top roll is driven by hydromotor and planetary reducer.
Position of the rolls is easily read with digital indicators.
Thanks to the hydraulic opening head, the bent part is easily removed.
Very easy operation with movable control panel.
Welded steel construction body.
SAE 1050 (CK45) induction hardened, forged or rolled steel shafts.
Taper bending system.
Hydraulic balancing system for parallel movement of the shafts.
Extended spindle ends for fitting profile, pipe, flat bar bending rolls.
Central lubrication system.
CE norm.

Optional Equipment

Standard Equipment

Lateral rolls move linear way with hydraulic pistons.
Overload protection.
Lateral rolls and top roll powered by hydraulic motor and planetary gearbox. (3 roll driven)
Hydraulic Drop-End for easy removal of finised part.
Easy operation with mobile control panel.
7’’screen for easy roll positioning of bottom rolls.
Welded steel frames.
Induction hardened steel rolls.
Conical bending device with ball bearing.
Central lubrication system.
Electronic balancing system for parallel movement of rolls.
Double speed working system.
Extended roll shafts for profile and pipe bending operation.
User’s manual
CE norm.

Optionlar Equipment

Top crane for support in large diameter bending. (Elevator)
Hydraulic side stops for support in large diameter bending.
Sheet removal system.
Ground and polished rolls for special jobs.
Infinitely variable speed adjustment system
Material driving stand.
